DCS30 Recessed Multiple

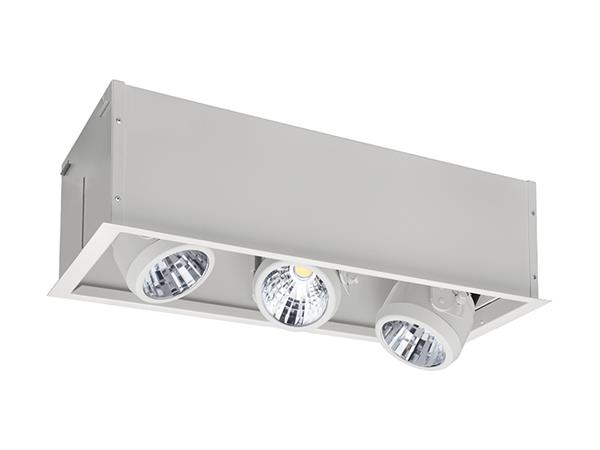

LED Single or Multi-Lamp Designer Cove™ Recessed Multiple
    Energy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Aperçu
  • Caractéristiques
Indy™ Designer Cove™ multi-lamp LED fixtures offer exceptional energy & operational efficiencies. They feature 1, 2, or 3 LED luminaires, each producing 1000 lumens, approximating the output of 75W PAR30 halogen while using about 80-percent less energy. The 2000 & 3000 lumen version approximates the output of 39W PAR30 and 70WT4 metal halide, also using significantly less energy. And with a service life of 50,000 hours, LEDs can provide 10 or more years of maintenance free operation in typical retail installations. These open aperture fixtures are available in an attractive flange trim design.
En savoir plus
Lire moins
Forme Rectangular
Light Source LED - Static
Lumens 1000 LM, 2000 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 97
Type de produit Housing
Liste de conformité BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR, ROHS
Certification environnementale Damp Location, Dry Location, Non-IC
Inscription réglementaire cUL, UL
Protocole de gradation 0-10V
Fixture Wattage 100, 101, 103, 107, 12.6, 12.8, 12.9, 13.6, 13.9, 14.9, 15, 23.3, 23.6, 23.7, 24, 24.1, 24.2, 24.6, 25, 25.1, 25.3, 25.7, 25.8, 26.2, 27.7, 27.9, 33.7, 33.9, 34.4, 34.6, 34.8, 35.2, 35.8, 36.5, 36.7, 37, 37.8, 40.6, 40.9, 46, 46.2, 46.4, 47.5, 48, 48.1, 48.3, 48.6, 50, 65, 67, 68, 69, 70, 71, 72, 75, 97, 99
Tension 120, 277, 347
Color Black, White
Types de fixations Recessed, Semi-recessed
Series DCS30

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique DCS30_1000_2000_3000 LM_J6_2_24G3.pdf Specification Sheet — DCS30 Series 1/8/2025 Voir

  • Photométrie et BIM

    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Type de document Titre du document Description Actualisé Voir
    Spectral Data Sheet Spectral Data Report_DCS30.pdf DCS30 35K 80CRI 6/28/2022 Voir

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 10/22/2024 Voir
    Instructions d'installation 065-1022.pdf MSS16/MSS30/DCS30 Recessed Fixtures in Grid Ceilings 12/5/2019 Voir
    Instructions d'installation 065-868.pdf DCS16/30 Series 12/5/2019 Voir
